150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange

Brand Name : Hebei Pantu

Model Number : F800 Mud Pump

Certification : API 7K & ISO

Place of Origin : China

MOQ : 1

Price : 10000USD~50000USD

Payment Terms : L/C, T/T

Supply Ability : 20sets/month

Delivery Time : 45 days

Packaging Details : 3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)

Rated Input Power : 597KW(800HP)

Stroke Per Minute : 150SPM

Stroke Length : 229mm(9")

Gear Ratio : 4.185:1

Max. Working Pressure : 34.5MPa(5000psi)

Suction Inlet Flange : 254mm(10") flange

Discharge Outlet Flange : 130.2mm(5 1/8") flange 34.5Mpa(5000psi)

Overall Dimension : 3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)

G.W. : 14000kgs(30865lbs)

Contact Now

F800 Drilling Mud Pump For Drilling Rigs, China Manufacturer

Introduction

A mud pump (sometimes referred to as a mud drilling pump or drilling mud pump), is a reciprocating piston/plunger pump designed to circulate drilling fluid under high pressure (up to 7,500 psi or 52,000 kPa) down the drill string and back up the annulus. A mud pump is an important part of the equipment used for oil well drilling.

Drilling Mud Pump is manufactured under the standard of API Spec 7k, mud pump parts at the fluid end are interchangeable with the parts that are in conformity with API Spec.

Forced lubrication of the Drilling Mud Pump combined with splash lubrication to make the lubrication effect perfect;

The performance of the Drilling Mud Pump was greatly improved by the durable fluid end; and examination, mud pump repair, and mud pump maintenance are easier to make due to their independent structure.

Liner Size in 6 1/2 6 1/4 6 5 1/2 5 4 1/2 4
Discharge Pressure Mpa 14.6 15.8 17.2 20.4 24.7 30.5 34.5
psi 2118 2290 2495 2915 3582 4424 5000
Stroke per Minute
(SPM)		 Power
KW(HP)		 Displacement L/s(GPM)
160 636
(853)		 39.21
(621.4)		 36.26
(574.7)		 33.41
(529.5)		 28.07
(444.9)		 23.2
(367.7)		 18.79
(297.8)		 14.85
(235.2)
*150 *597
(800)		 36.76
(582.6)		 34
(538.9)		 31.32
(496.4)		 26.32
(417.1)		 21.75
(344.7)		 17.62
(279.2)		 13.92
(220.6)
140 557.2
(693.3)		 34.3
(543.6)		 31.73
(502.9)		 29.23
(463.3)		 24.57
(389.4)		 20.3
(321.7)		 16.45
(260.7)		 12.99
(205.8)
130 517.4
(693.3)		 31.85
(504.8)		 29.47
(467.1)		 27.14
(430.1)		 22.81
(361.5)		 18.85
(298.7)		 15.27
(242.0)		 12.06
(191.1)
120 477.6
(640)		 29.4
(465.9)		 27.2
(431.1)		 25.06
(397.2)		 21.06
(333.8)		 17.4
(275.7)		 14.1
(223.4)		 11.14
(176.5)
110 437.8
(587.7)		 26.95
(427.1)		 24.93
(395.1)		 22.97
(364.0)		 19.3
(305.9)		 15.95
(252.8)		 12.92
(204.7)		 10.21
(161.8)
1 3.98
(5.33)		 0.245
(3.88)		 0.227
(3.59)		 0.209
(3.31)		 0.175
(2.77)		 0.145
(2.29)		 0.117
(1.85)		 0.093
(1.47)
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.　　　　　　　　
--The * present the recommendatory SPM and input power when mud pump runs continuously.　　　　　　　　

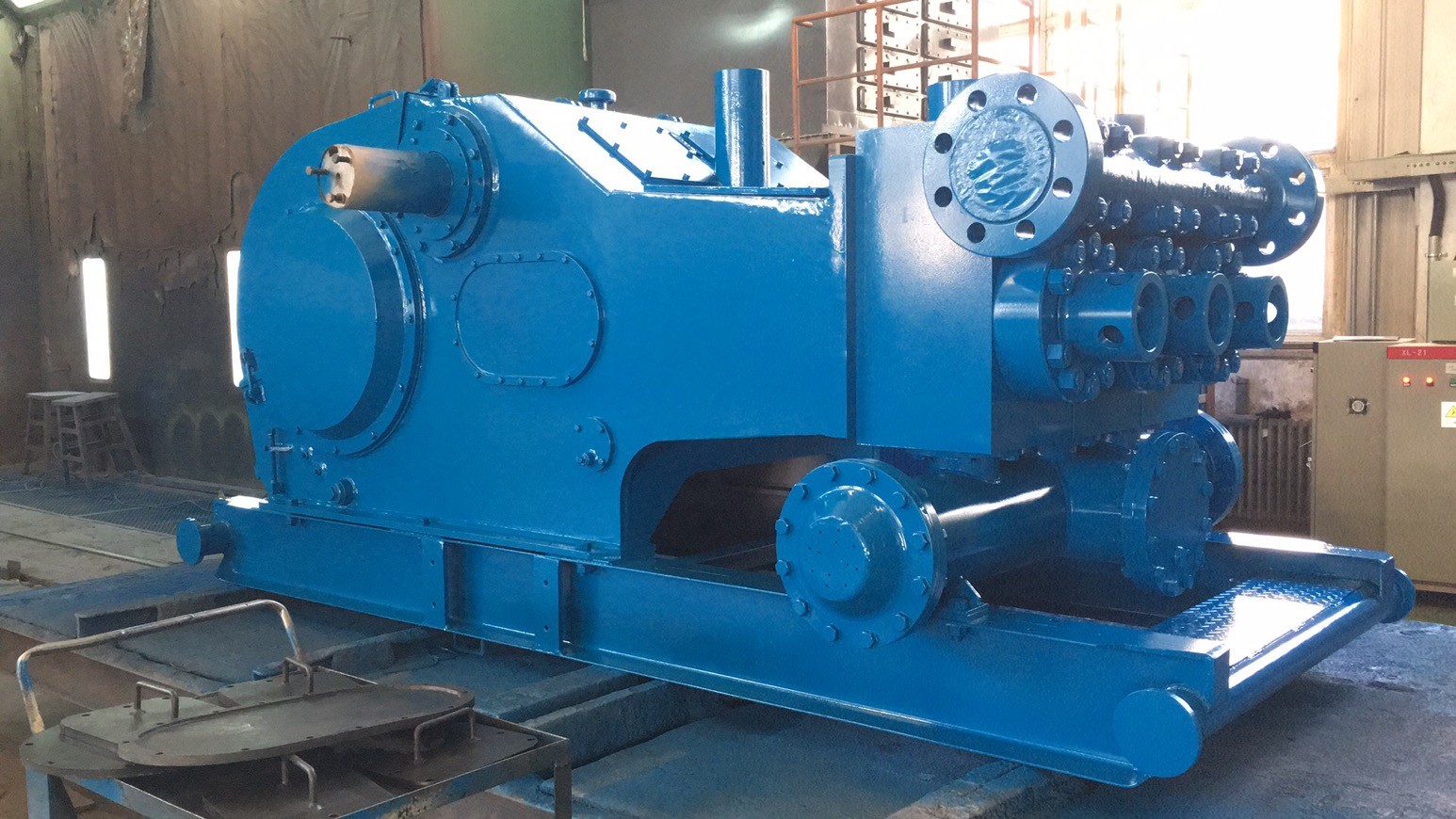

150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange150SPM Mud Pump Assembly with 9" Stroke Length and 10" Suction Inlet Flange
